eureka inbuilts

eureka opal inbuilt

The Opal fireplace Insert designed with its four sided surround will heat 160m2.

Installed off the floor in a Zero Clearance application or into a fireplace its a robust woodheater for the average Australian home.

Emissions 0.9g

Efficiency 72%*

Log Length 340mm

Dimensions

Facia Height: 750mm Flue Size: 150mm
Facia Width: 882mm Capacity: Up to 160m2
Facia Depth: 42mm Weight: 120kg
Rear Casing Height 595mm
Rear Casing Width 570mm
Rear Casing Depth 365mm
Back of woodheater to centre of flue: 134mm
Back of fascia to centre of flue: 231mm

Clearances and Hearth Dimensions
Min Hearth Size:
Width: 890mm – Depth: 570mm – Thickness: 12mm
(530mm in front of woodheater base)**

To Side Member 50mm
From top of appliance to underside of mantle 352mm
Top of appliance to timber mantle breast plate 292mm
From back of fascia to front of flue spigot 148mm

*Peak efficiency % quoted

**To achieve a minimum hearth depth of 400mm, unit must be raised by minimum 103mm

Eureka Jewel double sided

Two is better than one! Enjoy two sides of your fireplace with the Eureka Jewel Double Sided range. Available in freestanding, module and insert options there is sure to be something to suit everyone.

Features-

• Made in Australia

• Heats up to 420sqm

• 2 x 3 Speed Fans

• Cast Iron Firebox Liners

• 8mm Steel Baffle

• 10 Year Firebox Warranty

• 62% Efficiency

• 1.2g/kg Emissions

• 410mm Maximum Log Size

eureka stockade inbuilt

This large powerful woodheater, with a huge opening and viewing glass is designed to heat 240m2.

Brick lined and double rolled baffle, the Stockade looks great in any application.

Emissions 1.5g

Efficiency 67%*

Log Length 410mm

Dimensions

Facia Height: 758mm Flue Size: 150mm
Facia Width: 922mm Capacity: Up to 240m2
Facia Depth: 42mm Weight: 145kg
Rear Casing Height 635mm
Rear Casing Width 631mm
Rear Casing Depth 430mm
Back of woodheater to centre of flue: 134mm
Back of fascia to centre of flue: 296mm

Clearances and Hearth Dimensions
Min Hearth Size: Width: 948mm – Depth: 550mm – Thickness: 12mm
(510mm in front of woodheater base)**
To Side Member 50mm
From top of appliance to underside of mantle 634mm
Top of appliance to timber mantle breast plate 584mm
From back of fascia to front of flue spigot 213mm

eureka Pearl insert

The Eureka Ruby Pearl Insert Wood Fireplace is part of the Selection Series from Eureka Fireplaces.

Proudly made in Australia, the Eureka Pearl Insert combines high heat output and efficiency with low emissions for a superior burn. The Eureka Pearl features a sleek and modern design with black printed glass door and stainless steel handle. Cast Iron Firebox liners ensure maximum heat retention and efficiency. The optional zero clearance box makes installation into timber frames easy. With a heat output of up to 240sqm, the Eureka Pearl Insert will heat medium to large sized living rooms with ease. For a larger version see the Eureka Ruby Insert.

FEATURES-

• Designed and manufactured in Australia

• Heats up to 240sqm

• Zero Clearance Option

• Standard 3 Speed Fan

• Cast Iron Firebox Liners

• Stainless Steel Handle

• Sleek and modern deisgn

• Full fronted glass door

• 6mm steel firebox

• 74% efficiency

• 1.0g/kg emissions

eureka garnet inbuilt

The Eureka Garnet has a huge glass window that allows for optimum viewing of the flames combined with a large capacity firebox to take those large logs. These Eureka Garnet is simple to operate, efficient and powerful. Enjoy the ambience of an all Australian crackling log fire. The Eureka Garnet Inbuilt wood fireplace is a perfect choice for those large open plan living areas.

Eureka’s unique engineering design and manufacturing utilises the latest machine technology and processes available to the Australian market. We have created a woodheating appliance offering maximum efficiency in a sturdy stylish range. Eureka also utilise the latest heat generation techniques and air flow technology combined with the highest quality in materials to bring you the best range of woodheaters available today in Australia.

The Garnet Insert woodheater is the largest flat glass unit in the Eureka range.

Contemporary looking with an enormous burn chamber, the Garnet is designed to heat 280m2, requiring a 175mm flue. 3 Speed Fan is a standard feature. An optional zero clearance box is available for easy installation into timber frames.

FEATURES-

• Heats up to 280sqm

• Zero Clearance Optional

• Designed and Made in Australia

• 3 Speed Fan

• 8mm Steel Baffle Plate

• 6mm Steel Firebox

• Large Glass Window

• Firebrick lined firebox

• 1.4g/kg emissions

• 65% Efficiency

Dimensions

Facia Height: 828mm Flue Size: 175mm
Facia Width: 994mm Capacity: Up to 280m2
Facia Depth: 42mm Weight: 157kg
Rear Casing Height 706mm
Rear Casing Width 700mm
Rear Casing Depth 430mm
Back of woodheater to centre of flue: 134mm
Back of fascia to centre of flue: 295mm

Clearances and Hearth Dimensions
Min Hearth Size: Width: 1280mm – Depth: 625mm – Thickness: 25mm
(585mm in front of woodheater base)**
To Side Member 40mm
From top of appliance to underside of mantle 882mm
Top of appliance to timber mantle breast plate 732mm
From back of fascia to front of flue spigot 201mm

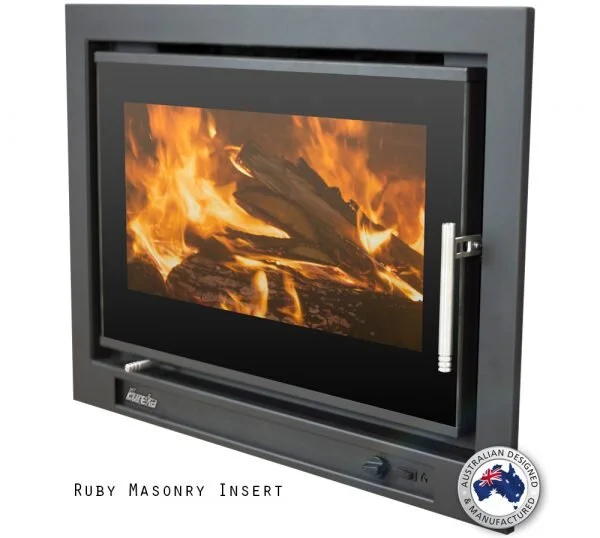

eureka ruby insert

The Eureka Ruby Inbuilt Wood Fireplace is part of the Selection Series from Eureka Fireplaces.

Proudly made in Australia, the Eureka Ruby Insert combines high heat output and efficiency with low emissions for a superior burn. The Eureka Ruby Insert features a sleek and modern design with black printed glass door and stainless steel handle. Cast Iron Firebox liners ensure maximum heat retention and efficiency. With a heat output of up to 300sqm, the Eureka Ruby Insert will heat the largest of living rooms with ease.

FEATURES-

• Heats up to 300sqm

• Made in Australia

• Standard 3 Speed Fan

• Cast Iron Lined Firebox

• 68% Efficiency

• 1.4g/kg Emissions

• Zero Clearance Option

• Contemporary Design

• Stainless Steel Handle

• Large Glass Viewing Area
